Alimentare electrica (Ph-V-Hz)
220-240V,1Ph,50Hz
Amperaj incalzire ( A )
10.2(1.1~13.3)
Amperaj racire ( A )
10.2(0.7~13.3)
Compresor Amperaj in functionare ( A )
9.4
Compresor Capacitate ( Btu/h )
7650
Compresor Model
KTF235D22UMT
Compresor Putere consumata ( W )
2065
Compresor Refrigerant oil/oil charge ( ml )
ESTEL OIL RB74AF/ 670ml
Consum electric incalzire ( W )
2035(260~3140)
Consum electric racire ( W )
2345(160~2960)
Control temperatura
Telecomanda
Debit aer UI (Hi/Mi/Lo) (m3/h)
980/817/662
Incalzire sezoniera Clasa eficienta energetica
A+
Incalzire sezoniera Pdesignh ( kW )
4.8
Incalzire sezoniera SCOP (W/W)
4.0
Incalzire sezoniera Temperatura de balans (℃)
-7
Motor ventilator UE Model
ZKFN-50-8-2
Motor ventilator UE Putere ( W )
115
Motor ventilator UE Turatie (r/min)
850/700/550
Motor ventilator UI Condensator electric (uF)
―
Motor ventilator UI Model
WZDK58-38G
Motor ventilator UI Putere ( W )
58.0
Motor ventilator UI Turatie(Hi/Mi/Lo) (r/min)
1150 / 1000 / 850
Nivel presiune sonora UE ( dB(A) )
59.5
Presiune de proiect ( MPa )
4.3/1.7
Presiune sonora UI (Hi/Mi/Lo/Si) ( dB(A) )
44.5/42/34.5/28
Putere Incalzire Capacitate ( Btu/h )
25000(5500~30000)
Putere max. consumata ( W )
3850
Putere Racire Capacitate ( Btu/h )
24000
(7100~27120)
Putere sonora UE ( dB(A) )
67.0
Putere sonora UI (Hi) ( dB(A) )
59
Racire sezoniera Clasa eficienta energetica
A++
Racire sezoniera Pdesignc ( kW )
7.0
Racire sezoniera SEER (W/W)
6.1
Refrigerent Masa incarcatura ( Kg )
1.6
Schimbator UI a.Numar spirale
2.0
Schimbator UI a.Numar spirale_1
2.0
Schimbator UI b.Pas tub(a)x pas linie(b) ( mm )
21x13.37
Schimbator UI b.Pas tub(a)x pas linie(b) ( mm )_1
25.4x22
Schimbator UI c.Spatiere ( mm )
1.3
Schimbator UI c.Spatiere ( mm )_1
1.4
Schimbator UI e.Diametru tub ( mm )
Φ7, tub canelat
Schimbator UI f.Lungime spira x inaltime x latime ( mm )
780x315x26.74
Schimbator UI f.Lungime spira x inaltime x latime ( mm )_1
730x660x44
Schimbator UI g. Numar de circuite
4
Suprafata aplicatie minim maxim (m2)
32-47
Temperatura limita pentru incalzire (℃)
-15
Temperaturi de lucru Exterior (racire/incalzire) ( ℃ )
-15～50/-25～30
Temperaturi de lucru Intern (racire/incalzire) (℃)
17～32/0～30
Tevi refrigerent Diam tevi refrigerent lichid/gaz ( mm/inch )
Φ9.52(3/8’‘)/Φ15.9(5/8’‘)
Tevi refrigerent Diferenta max. de nivel ( m )
25
Tevi refrigerent Lungime maxima traseu teava ( m )
50

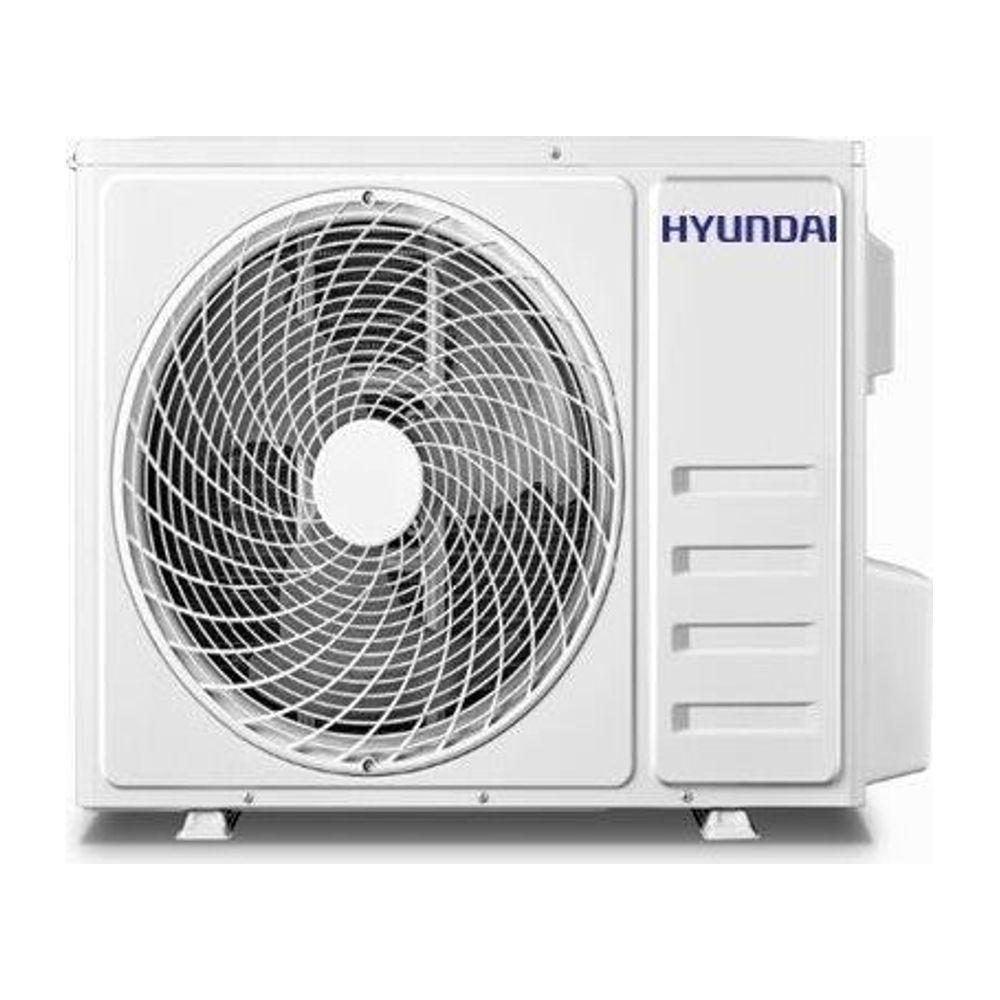

UE Ambalaj (W*D*H) ( mm )
965x395x765
UE Dimensiuni (W*D*H) ( mm )
845x363x702
UE Masa Net/Gross ( Kg )
51.5/54.5

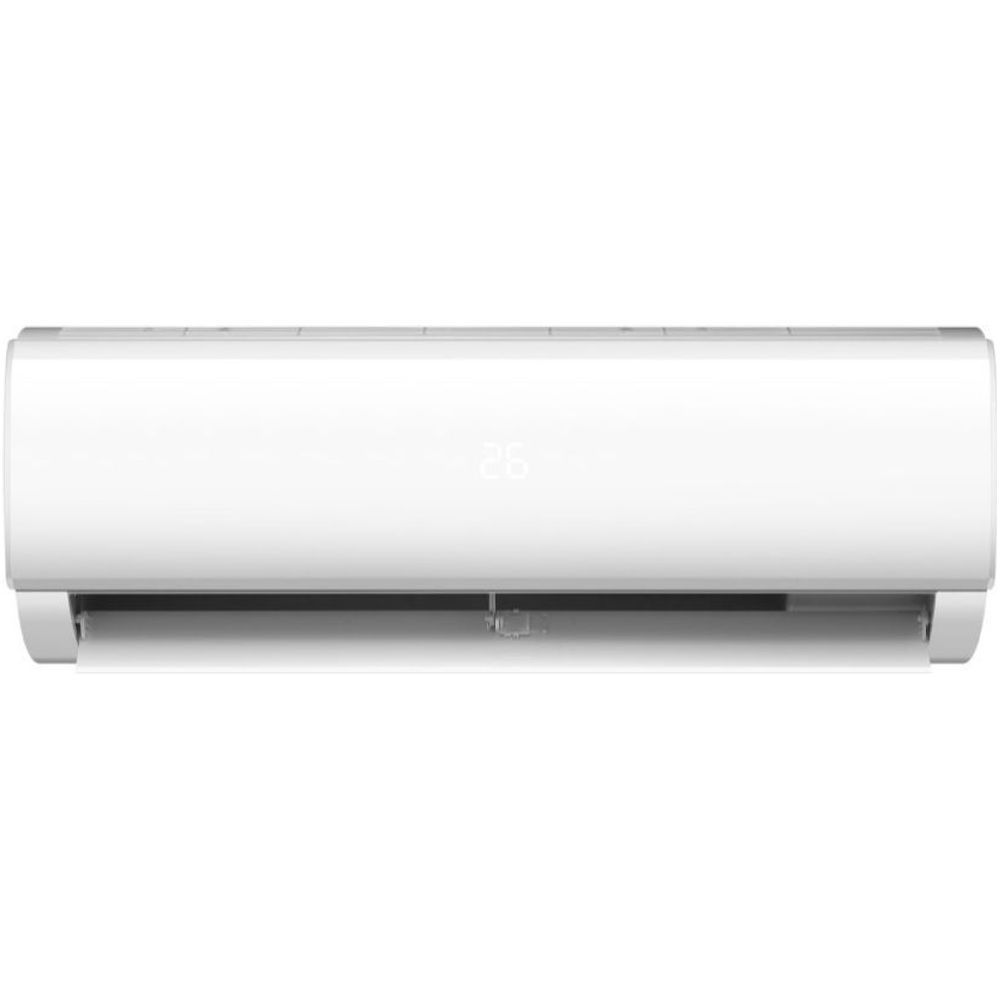

UI Ambalaj (W*D*H) ( mm )
1120x405x310
UI Dimensiuni(W*D*H) ( mm )
1040x220x327
UI Masa Net/Gross ( Kg )
12.3/15.8
