Cod Produs: 041513-904

Descriere:

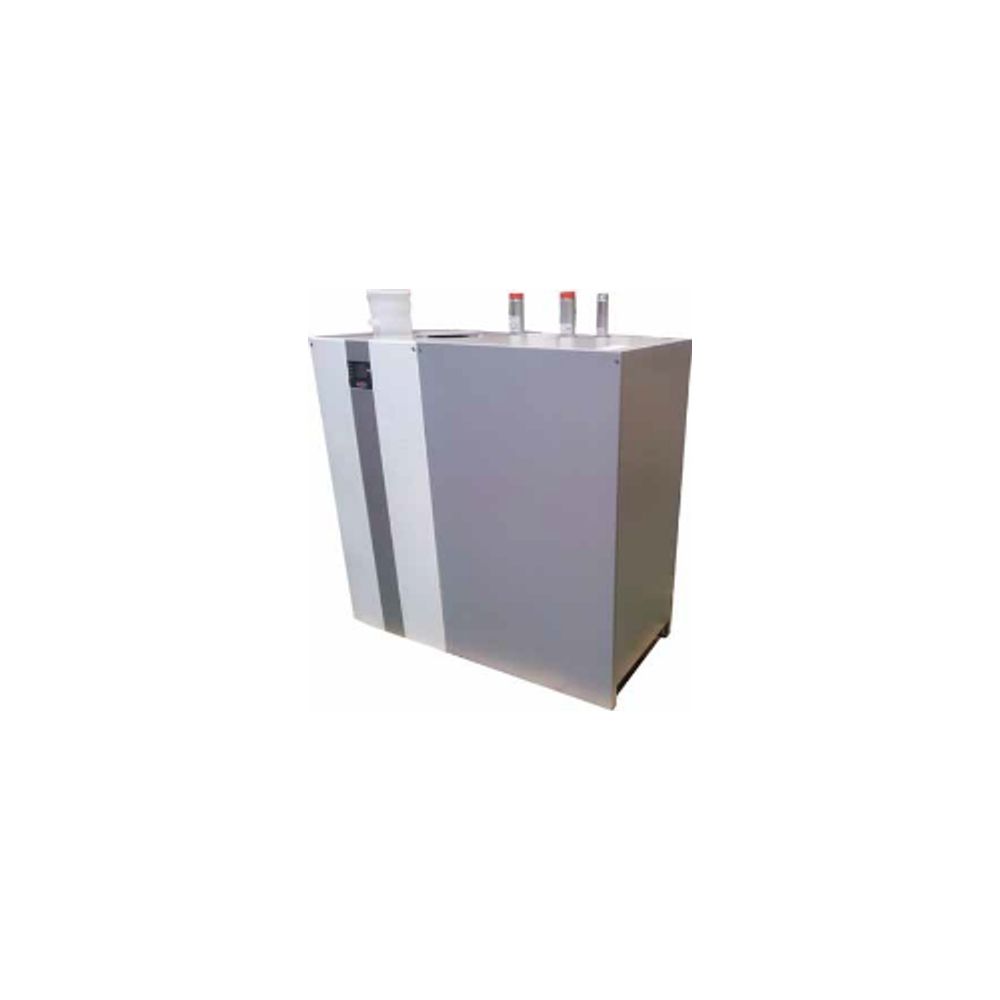

Cazan de pardoseala in condensatie MGK-2 250 - WOLF

Caracteristici:

- schimbator de caldura din elementi de aluminiu / siliciu cu inalt transfer termic

- compacte, amprenta la sol mica

- functionare extrem de silentioasa

- plaja de modulare 17÷100% si eficienta pana la 110%

- semnal 0-10V pt BMS

- posibilitate de functionare cu aspiratie/refulare din/in exterior (blanced flue operation)

- functionare in cascada pana la 5 cazane ajungand la o putere maxima de 5 MW

- comunicare via Smartphone, laptop sau PC prin modulul LAN / WLAN Wolf Link Home

Specificatii:

Adancime (mm)

640

Alimentare electrica

1x230V / 50 Hz

Alimentare gaz

1 1/2"

Condens la 40°/30°C (l/h)

Consum electric sarcina partiala/maxima (W)

43 / 326

Continut de apa (l)

20.0

Eficienta la 30% (%)

106.6

Eficienta la Qmax cu 50°/30°C (%)

103.9

Eficienta la Qmax cu 80°/60°C (%)

98.0

Inaltime (mm)

1,300

Latime (mm)

1,355

Masa totala (kg)

292

Model

MGK-2 250

Plaja de modulare (%)

17÷100

Presiune disponibila la ventilator (Pa)

150

Presiune maxima (bar)

6.0

Putere termica maxima (50°/30°C) (kW)

250.0

Putere termica maxima (80°/60°C) (kW)

233.0

Putere termica minima (50°/30°C) (kW)

44.0

Putere termica minima (80°/60°C) (kW)

39.0

Racord aspiratie (mm)

160

Racord evacuare gaze (mm)

160

Racord retur

Racord tur

SPECIFICATII TEHNICE / MODEL (U.M.)

MGK-2 250

Temperatura maxima (°C)

90.0
